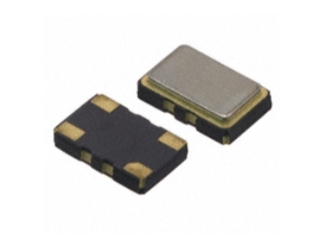

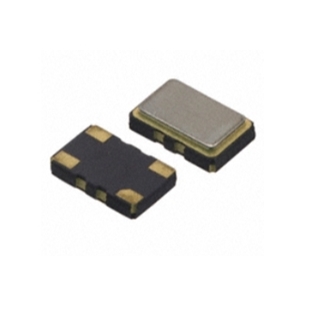

FO7HSCAE20.0-T1,歐美進口貼片晶振,O7HS工業應用晶振
- 頻率：20 MHz
- 尺寸：7.50mm x 5.20mm
- 應 用： FO7HSCAE20.0-T1,歐美進口貼片晶振,O7HS工業應用晶振,憑借20.0MHz頻率,工業級性能及貼片封裝,全面適配多類型工業設備,減少數據丟包或延遲,同時貼片封裝適配網關設備的緊湊結構設計.
-
.png)
.png)
FO7HSCAE20.0-T1,歐美進口貼片晶振,O7HS工業應用晶振
作為歐美進口的O7HS系列晶振,FO7HSCAE20.0-T1依托進口供應鏈的嚴格品控,從源頭保障工業級品質,采用高純度石英晶體核心材料,經過歐美先進的精密切割,拋光與參數校準工藝,確保頻率基準的長期穩定性,出廠前每顆產品均經過高溫,低溫,電磁干擾,機械振動,電壓波動等工業場景模擬測試,不良率控制在極低水平(典型值＜100ppm),降低工業設備后期因時鐘故障導致的停機維護成本.對于工業設備研發企業,進口產品的標準化參數可減少跨國適配難度,同時歐美技術團隊可提供工業場景定制化技術支持,協助解決復雜工況下的時鐘匹配問題,縮短研發周期,對于生產企業,其穩定的進口供貨周期,標準化貼片石英晶振封裝與高良率特性,能保障工業設備的大規模量產效率,有效平衡工業級性能,可靠性與成本,是工業設備時鐘方案的優質選擇.
.png)
.png)
FO7HSCAE20.0-T1,歐美進口貼片晶振,O7HS工業應用晶振
| 原廠型號 Originalmodel： | FO7HSCAE20.0-T1 | 品牌brand： | Fox Electronics |
| Manufacturer品牌 | Fox高品質晶振 | OperatingTemperature溫度 | -10°C ~ 70°C |
| Series型號 | O7HS | Current-Supply(Max) | 15mA |
| Type類型 | XO (Standard) | PackageHeight高度 | 1.50mm |
| Frequency頻率 | 20 MHz | Termination 腳位 | 4 pad |
| 輸出方式 Output： | HCMOS | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±100ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 7.50mm x 5.20mm | 最小包裝數MPQ： | 1000 |
.png)
.png)
FO7HSCAE20.0-T1,歐美進口貼片晶振,O7HS工業應用晶振
| FO7HSCBE25.0-T1 | Fox Electronics | F4105 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FT5HNBPK25.0-T1 | Fox Electronics | FOX924 | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK10.0-T1 | Fox Electronics | FOX924 | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.0-T1 | Fox Electronics | FOX924 | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.288-T1 | Fox Electronics | FOX924 | TCXO | 12.288 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK14.7456-T1 | Fox Electronics | FOX924 | TCXO | 14.7456 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK20.0-T1 | Fox Electronics | FOX924 | TCXO | 20 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK27.0-T1 | Fox Electronics | FOX924 | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT9CVDPH20.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO3HSKDM24.0-T2 | Fox Electronics | F310R | XO (Standard) | 24 MHz | HCMOS | 1.8V | ±25ppm |
| FO3HSKDM33.333-T2 | Fox Electronics | F310R | XO (Standard) | 33.333 MHz | HCMOS | 1.8V | ±25ppm |
| FO7HSCAE50.0-T1 | Fox Electronics | F4100 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±100ppm |
| FT5CNDPK12.8-T1 | Fox Electronics | FOX914 | TCXO | 12.8 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT5HNBPK16.0-T1 | Fox Electronics | FOX924 | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HSCBE40.0-T2 | Fox Electronics | F335 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE33.333-T1 | Fox Electronics | F535L | XO (Standard) | 33.333 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK12.0-T1 | Fox Electronics | T3HN | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT3HNBPK27.0-T1 | Fox Electronics | T3HN | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HFCYM0.032768-T3 | Fox Electronics | F32K | XO (Standard) | 32.768 kHz | HCMOS | 3.3V | -170ppm, +10ppm |
| FO5HSCBE25.0-T1 | Fox Electronics | F535L | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE1.8432-T1 | Fox Electronics | O7HS | XO (Standard) | 1.8432 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBE50.0-T1 | Fox Electronics | O7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE25.0-T1 | Fox Electronics | O7HS | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBM50.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE48.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HHAAE1.8432-T1 | Fox Electronics | O7HH | XO (Standard) | 1.8432 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE32.0-T1 | Fox Electronics | O7HH | XO (Standard) | 32 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE50.0-T1 | Fox Electronics | O7HH | XO (Standard) | 50 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE40.0-T1 | Fox Electronics | O7HH | XO (Standard) | 40 MHz | HCMOS | 5V | ±100ppm |
| FT1MNTUM-38.4-T1 | Fox Electronics | FT1MN | TCXO | 38.4 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT3MNTUM-26.0-T1 | Fox Electronics | FT3MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT1MNTUM-26.0-T1 | Fox Electronics | FT1MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-32.0-T1 | Fox Electronics | FT2MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-30.0-T1 | Fox Electronics | FT2MN | TCXO | 30 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FO3HSCBE50.0-T1 | Fox Electronics | F335 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE3.6864-T1 | Fox Electronics | * | - | - | - | - | - |
| FO5HSCBE24.0-T1 | Fox Electronics | F535L | XO (Standard) | 24 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCBE20.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FT3HNBPK25.0-T1 | Fox Electronics | T3HN | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCAE40.0-T1 | Fox Electronics | F4100 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK16.0-T1 | Fox Electronics | T3HN | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCBE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±50ppm |
| FT3HNBPK10.0-T1 | Fox Electronics | T3HN | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HHAAE50.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FO7HHAAE16.0-T1 | Fox Electronics | F3345 | XO (Standard) | 16 MHz | HCMOS | 5V | ±100ppm |
| FO7HSCDE48.0-T1 | Fox Electronics | O7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±25ppm |
| FT5CNDPK20.0-T1 | Fox Electronics | FOX914 | TCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT3MNTUM-32.0-T1 | Fox Electronics | FT3MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT5HNBPK19.44-T1 | Fox Electronics | FOX924 | TCXO | 19.44 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT2MNTUM-40.0-T1 | Fox Electronics | FT2MN | TCXO | 40 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT9CVDPH10.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 10 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO2HSKBM25.0-T1 | Fox Electronics | FO2HS | XO (Standard) | 25 MHz | HCMOS | 1.8V | ±50ppm |
| FO3HSCBE12.0-T1 | Fox Electronics | F335 | XO (Standard) | 12 MHz | HCMOS | 3.3V | ±50ppm |
| FO3HSCBE25.0-T1 | Fox Electronics | F335 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE10.0-T1 | Fox Electronics | F535L | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE16.0-T1 | Fox Electronics | F535L | XO (Standard) | 16 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE48.0-T1 | Fox Electronics | F535L | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE50.0-T1 | Fox Electronics | F535L | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE10.0-T1 | Fox Electronics | F4100 | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±100ppm |
